LRES4002PTPF-POE

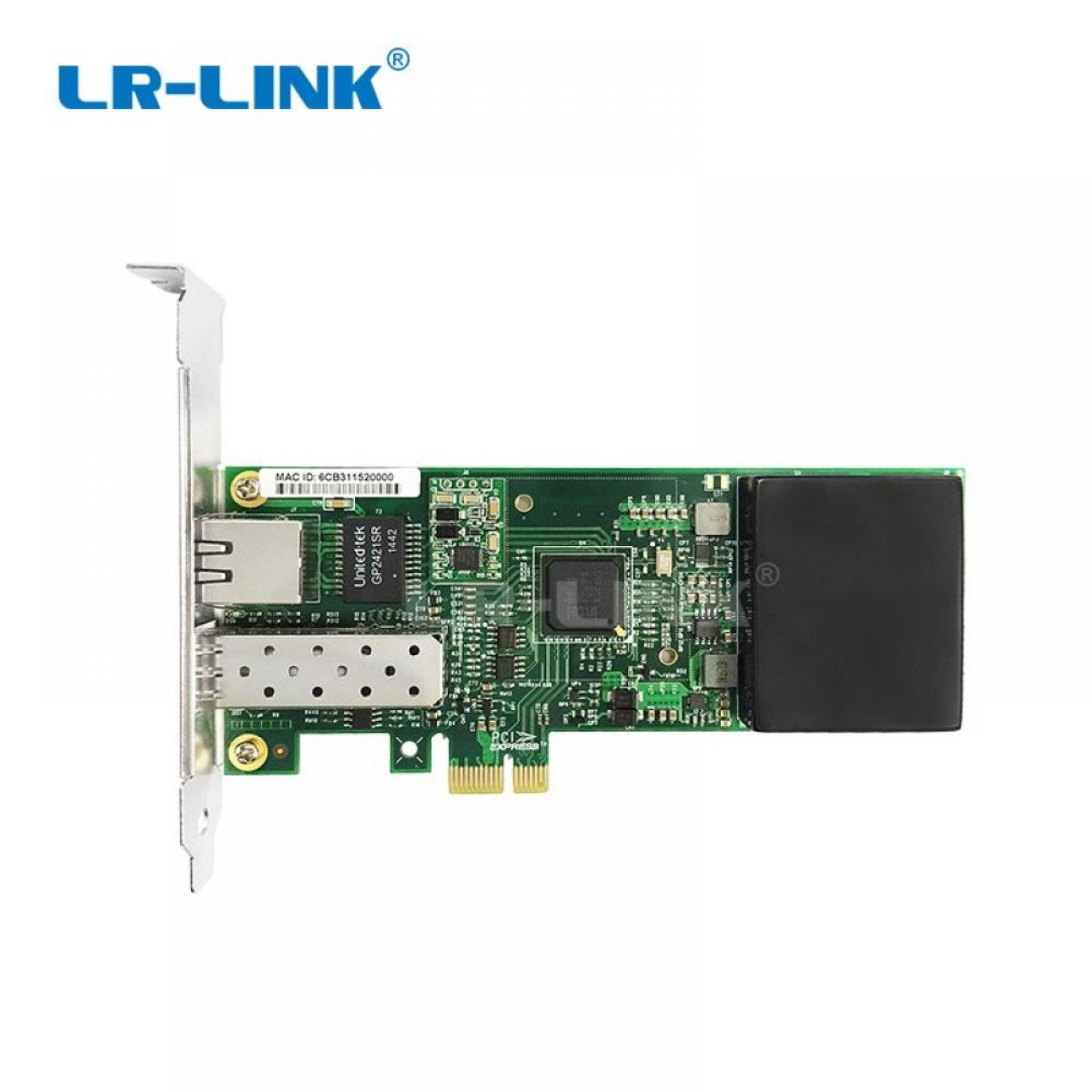

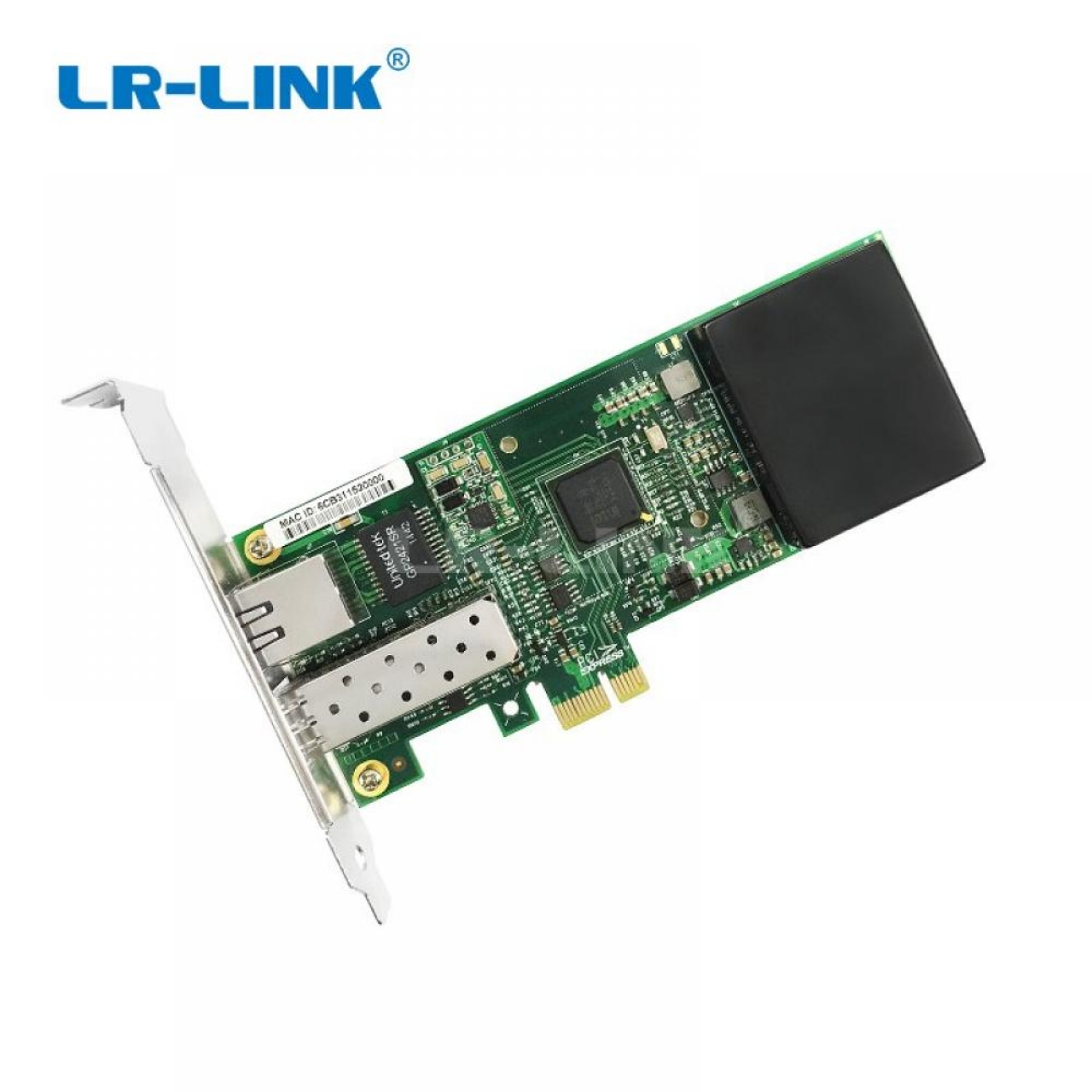

PCIe Gigabit Fiber Network Interface Card VoIP with PoE+ 1000Base-SX/LX and 10/100/1000Base-T PoE+
Key Features
Management Software
VLAN support
Link aggregation
Failover
Advanced Properties
PCIe 2.0
Secured transmissions
Advanced installation utility
Advanced diagnostics
Remote boot (PXE 2.1)
TCP/IP checksum off-loading
Priority queueing
Driver support for popular operating systems
Available with SC, ST, LC, or SFP connectors
Compliant with the Trade Agreement Act
Microsoft-certified drivers
Low-profile and standard height brackets included
(low-profile attached)
IPv6
Specifications
Management Features
WMI
ACPI 1.1
PXE 2.1 boot ROM
SNMP
Bus Type
PCIe x1
Ethernet
IEEE 802.1p Quality of Service
IEEE 802.1Q VLANs
IEEE 802.2 LLC
IEEE 802.3ac MAC
IEEE 802.3ab 1000T over twisted pair
IEEE 802.3x Flow control auto-negotiation
IEEE 802.3z 1000X
IEEE 802.3af Class 3 PoE
IEEE 802.3at Class 4 PoE (PoE )
Power Over Ethernet
Mode A power
Power budget 536MA @ 56V, 30 Watts
Network Type
10/100/1000T with PoE
1000SX, 1000LX, or 1G SFP
Network Speed
Copper Auto-negotiation
100 full-duplex
100 half-duplex
10 full-duplex
10 half-duplex
Fibre 1000SX
1000LX
Optical Specifications
SX
Output Optical Power -9.5 (Min) -4 (Max) dBM
Optical Sensitivity -19 (Typ) -17 (Max) dBM
Center Wavelength 850 nm
LX
Output Optical Power -9 (Min) -3 (Max) dBM
Optical Sensitivity -20 (Typ) -19 (Max) dBM
Connectors
RJ-45
SC, LC
SATA – Serial ATA used to draw power for PoE
Power
Power consumption 2.5 Watts (avg) without PoE
Signaling voltage 3.3V
Environmental Specifications
Operating temperature 0ºC to 40ºC (32°F to 104°F)
Relative humidity 5% to 90% (non-condensing)
Storage temperature -25ºC to 70ºC (-13°F to 158°F)
Physical Characteristics
Ships with low-profile bracket attached to interface card.
Standard bracket included in packaging.
Network Operating Systems (NOS) Software Support
DOS, Novell ODI
Windows XP 32-bit (64-bit)
Windows Server 2003 32-bit (64-bit)
Windows Vista 32-bit (64-bit)
Windows 7 32-bit (64-bit)
Windows 8 32-bit (64-bit)
Windows 8.1 32-bit (64-bit)
Windows Server 2008 32-bit (64-bit)
Windows Server 2008 R2 32-bit (64-bit)
Windows Server 2012
Windows Server 2012 R2
Linux 2.4 series kernel、2.6.x、3.x
FreeBSD 7.x or most of FreeBSD
UnixWare / Open Unix 8
Sun Solaris x86
VMware
Xen4
